Encoder Hub Configurator
SAS IntelliLink™ Encoder Hub (IFEL)
Define encoder ports, fiber length, I/O configuration, signal protocols and diagnostics — then send your specification to SAS.
Configuration Tool Encoder Hub
Build your encoder hub specification
Select each option below for your ILEH hub string and ILEM master configuration, then review the summary and submit your inquiry.
Encoder
Signal: Not selected
Encoder supply: Not selected
ILEH Hub
Hub variant: Not selected
Operation voltage: Not selected
Fiber
Duplex fiber: Not selected
ILEM Master
Status I/O: Not selected
RS485: Not selected
CNC
CNC output: Not selected
RS485 & SIL Console — live diagnostic view
The RS485 port is a dedicated supervision link to SAS SIL Console. Encoder telegrams, fiber link status, CRC results, and hub/master health are exposed in real time — independently of the CNC feedback outputs.

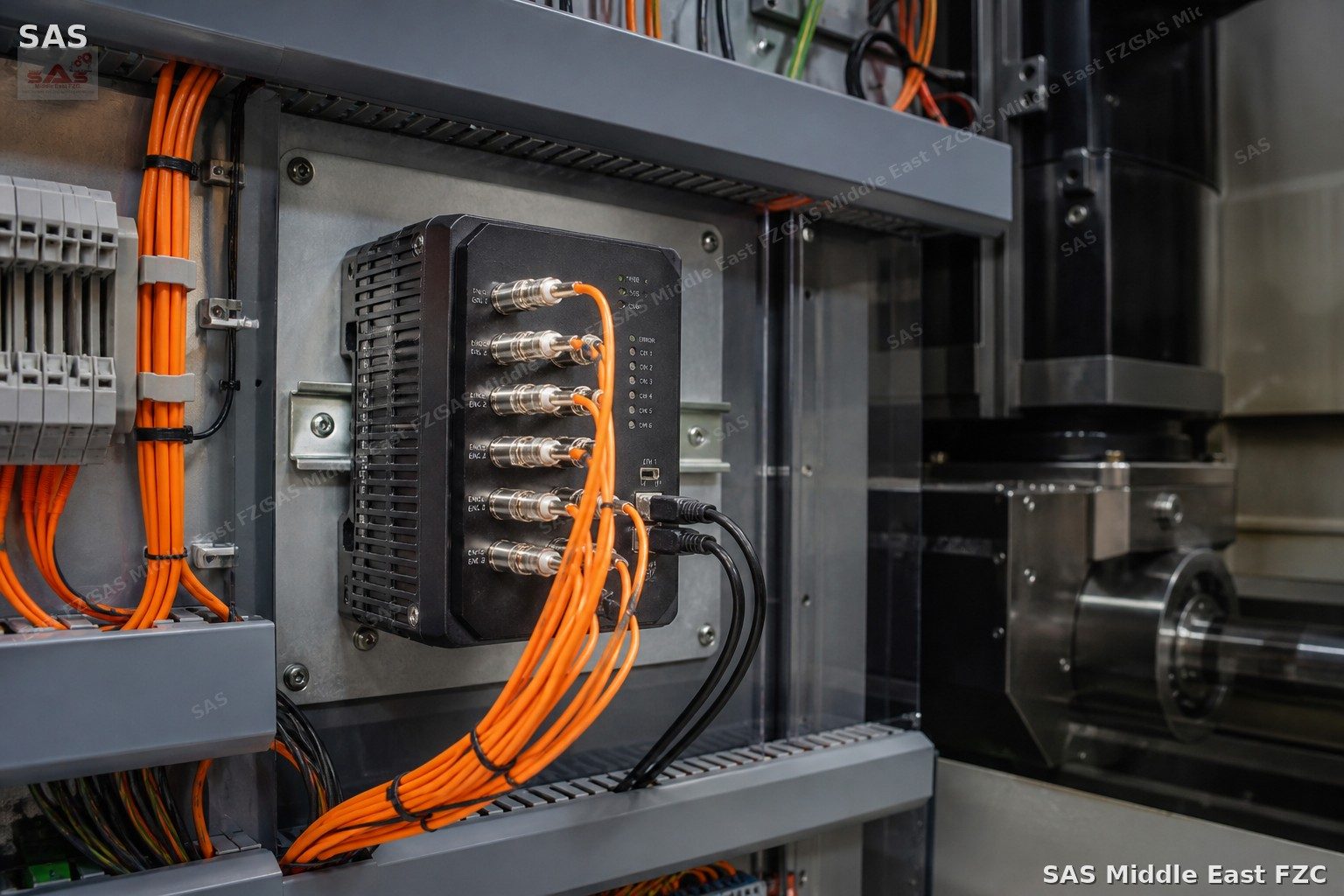

Acceptance & commissioning. During FAT, SAT, and line prove-out on multi-axis fiber encoder systems, engineers can verify each port, fiber string length, and protocol conversion path before production release — without external analyzers on the CNC interface.
- CRC status — frame and telegram integrity
- Protocol binary — raw encoder frame view
- Absolute position — resolved position value
- Error & alarm flags — fault and warning status
- Z counter — index and reference mark events
- Turn / revolution counter — multi-turn count
- Line speed — RS485 link baud rate and comms status
- Link status — fiber string and ILEM connection health
- Bridge operating status — power, mode and readiness
- Encoder link quality — input signal health
- Frame sequence counter — telegram sequence tracking
- Cycle time — update interval and processing latency
All parameters above are available through SIL Console over RS485. Specify RS485 where acceptance testing needs documented encoder-path and fiber-link verification across your hub strings.
Configuration Summary
Configuration and your notes are copied into the contact form below. You can still edit the message before submitting.
Send your configuration to SAS
Complete the form with your contact details. The message field is pre-filled with your encoder hub configuration — add machine make/model, CNC type, number of fiber strings, or datasheet references if available.
